May 4, 2018

December 30, 2012

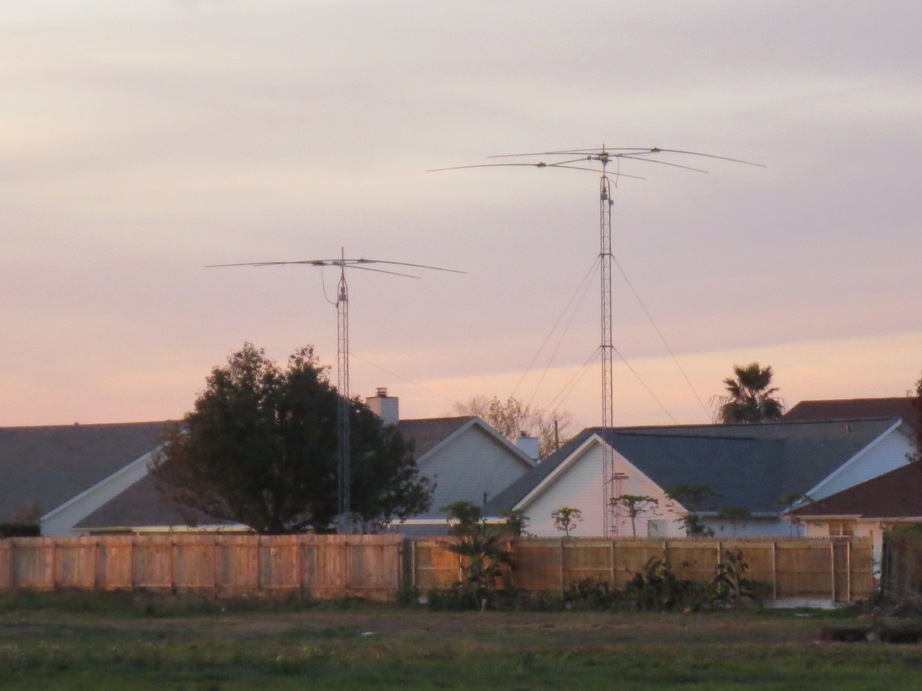

Amateur Radio Station AA5AU one week before the 2013 ARRL RTTY Roundup

December 16, 2012

Today I installed the new 3-element SteppIR yagi on a rebuilt 45′ tower. This antenna installation was the easiest yagi installation I ever had. For details, click here.

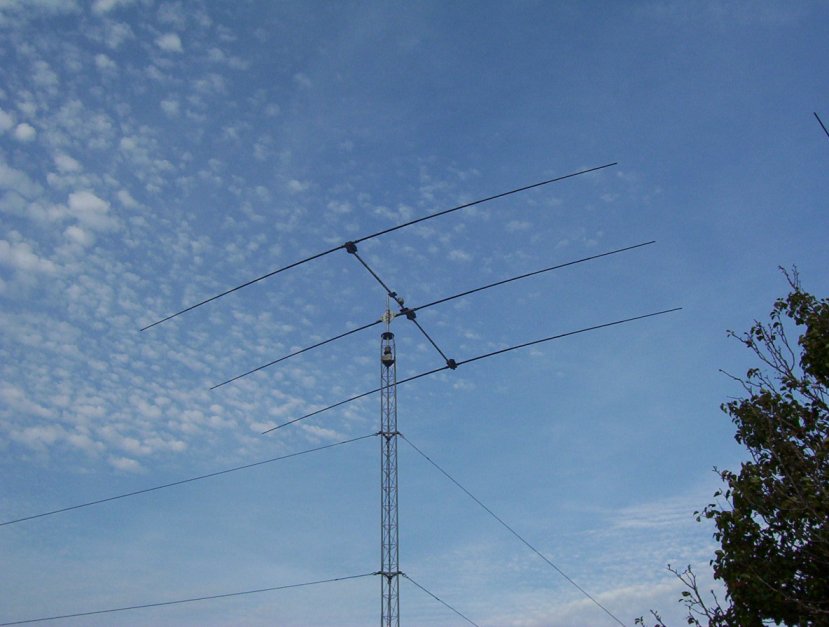

Brand new 3-element SteppIR yagi installed on a rebuilt 45′ tower on December 16, 2012. Installation details here.

October 20, 2012

I removed the KT34 from the smaller tower and installed a 2 element SteppIR from parts taken from the damaged 3 element SteppIR. Pictures, details and antenna graphs here.

2-element SteppIR yagi with 72″ separation built with parts from Isaac-damaged 3-element antenna. Pixel loop receiving antenna on top.
